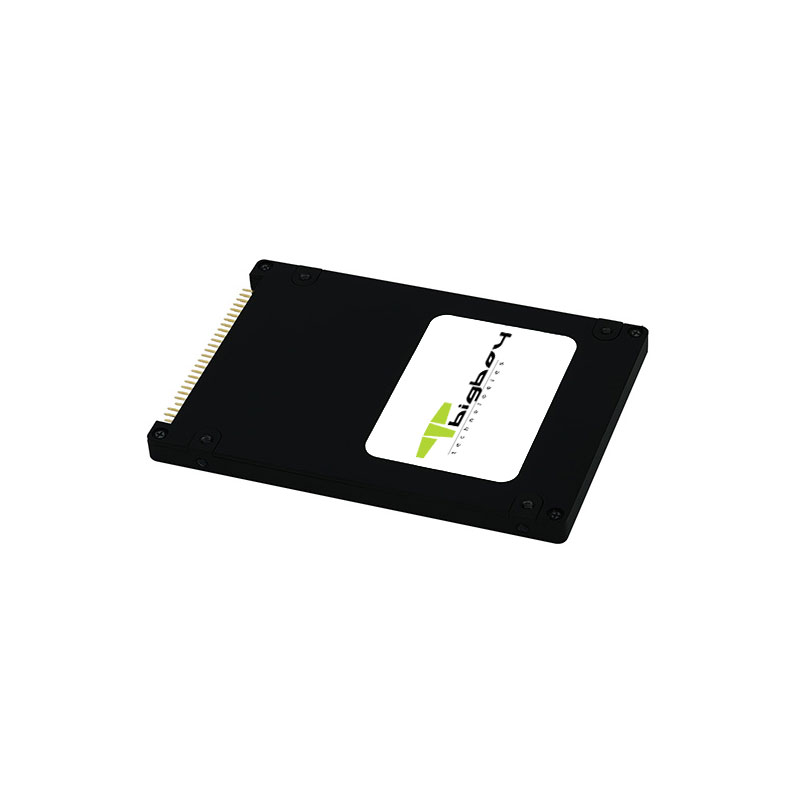

1.8” PATA IDE SSD complies with ATA 7 standard, delivers extraordinary R/W speed and reliability.
And with Internal detectors IC for power loss, over voltage, 1.8” IDE SSD can work as a perfect IDE storage for industrial, automotive and medical areas.
- No moving parts to fail
- Super-low operating and standby power needs
- Greater resistance to shock & vibration
- Operates in extreme temperatures
Specifications
- Interface : Standard PATA/IDE (44 pin)
- Form Factor : 1.8 inch
- Flash Type : MLC
- Capacity(GB) : 16GB / 32GB / 64GB / 128GB
- Op. Voltage(V) : 5V±5%
- Op. Temp.(°C) : -40°C~85°C
- Shock(G) : 1500G, 0.5ms
- Vibration(Hz/G) : 5.0G (Peak-to-Peak), 5Hz to 800Hz (Frequency)
- Dimensions(mm) : 78.4mm×70.0mm×5.0mm
- Warranty : Three-year Limited Warranty
