Bigboy M.2 2280 NVMe SSD USB 3.1 Type-C SSD Enclosure

Published




Bigboy M.2 NVMe enclosure allows M.2 NVMe SSDs as high speed USB 3.1 external SSDs.

Latest JMS583 Gen3 x2 controller enables to connect M.2 2280 PCIe NVMe SSD drives via USB 3.1, USB 3.0 or 2.0 ports. With the USB 3.1 Type-A cable provided with the product, it is possible to use it on nearly any PC. However, for USB 3.1 Gen 2 performance, the drive must be connected to the USB 3.1 Gen 2 port.

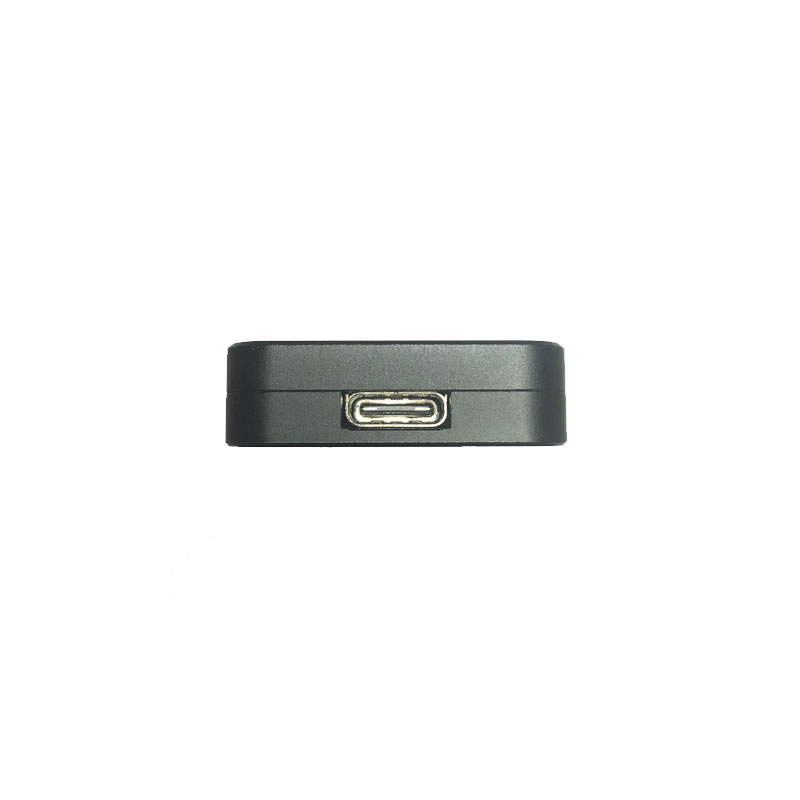

TYPE-C

Easily connect the enclosure to your system. Type-C connectors reversible design makes it easier to install.
*Note: A USB Type-C to Type-A cable is included. Users will need to provide their own adapter or compatible cable to attach the enclosure to USB Type-C devices.

Support multiple  form factors

Designed to use with 42mm (2240), 60mm (2260) and 80mm (2280) M.2 NVMe SSD drives.

Better Heat Dissipation

Double sided copper bars provide effective heat dissipation. Makes drive more durable and stable.

Always cool


All aluminum case keep drive always cool.

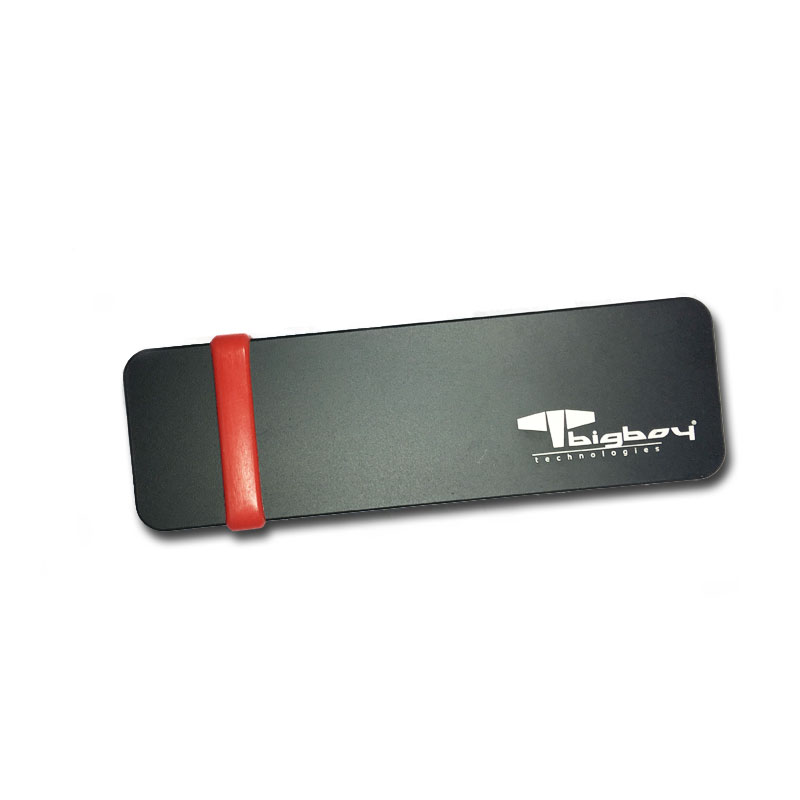

Anti slip silicone band

Small silicone band keeps the enclosure on slippery surfaces. And prevents loss of cable.





High Quality Components


With high quality components and copper bars keep drive and data safe.









LED Indicator

Sürücü durumu takibi için LED bildirim ışığı mevcuttur. Sürücü bağlandığında ve okuma/yazma işlemi yapılırken LED bildirim ışığı ile takip edilebilir. Check drive status via LED. Power on light and flashes on read and write operations.

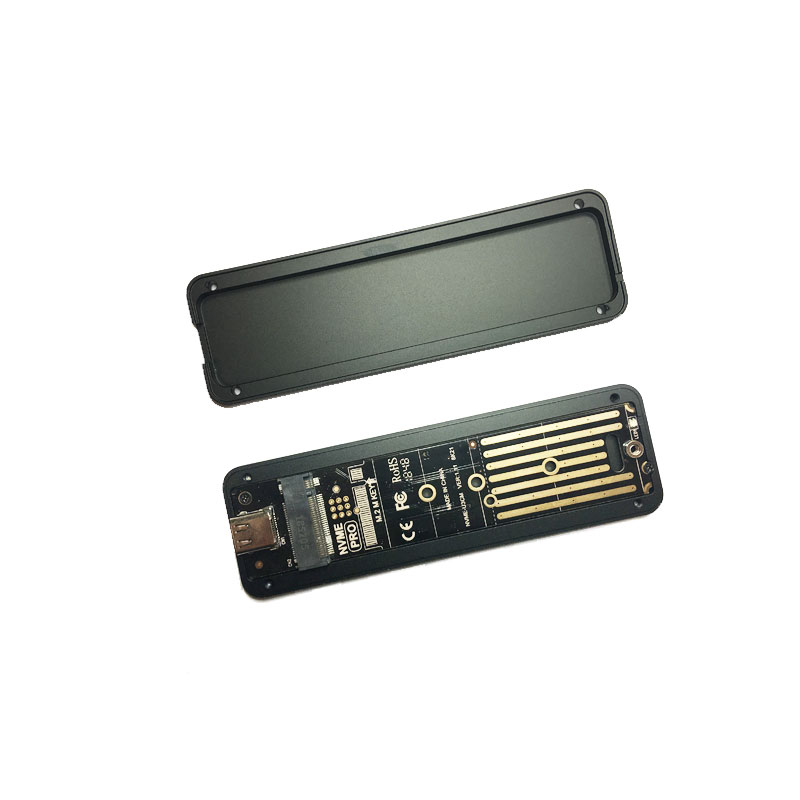

Compatible with M.2 NVMe SSDs

Bigboy M.2 NVMe enclosure supports M key 22×30, 22×42, 22×60 ve 22x80mm M.2 NVMe SSD drive. Not compatible with B key drives or B-M key M.2 SATA drives.

Effective heat control

Paste 10 thermal silicon pad in package on every chip on drive. Pads keep chips cool.

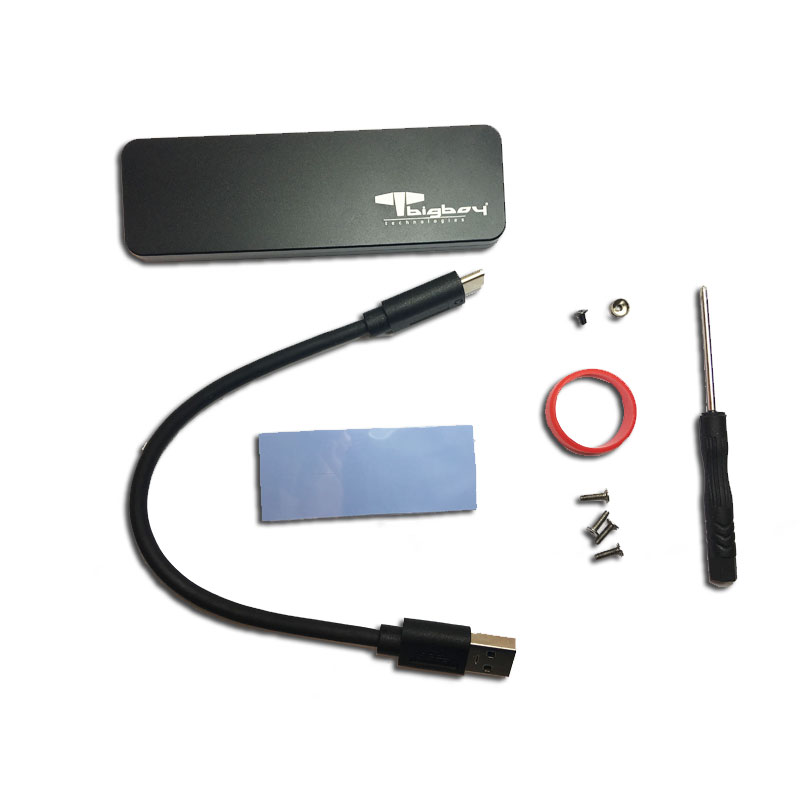

Pack Content

  • 1 – USB 3.1 M.2 PCIe NVMe SSD enclosure
  • 1 – USB 3.1 Type-A – Type-C cable (24cm)
  • 1 – Screwdriver
  • 2 – Silicon Band
  • 10 – Thermal pads, for chips
  • 4 – Case Screw
  • 1 – M.2 SSD screw
  • 1 additional small stud to go in the 60mm/42mm stand-off, in case NVMe SSD’s shorter than 80mm



Specifications

  • Part Number : BTC-M2PCINVTCCS
  • Dimension (WxHxD): 102mm x26mmx9mm
  • Weight : 54g
  • Drive Interface : PCIe Gen3 x2 ( Not compatible with SATA drives)
  • Connection Interface : USB 3.1 Gen 2 (10Gbps)
  • Voltage : DC 5V
  • Operating temperature : 0°C ~ 70°C
  • Storage temperature : -40°C ~ 85°C
  • Warranty : 2 years
  • System Support : Desktop or notebook System with Microsoft Windows 7 or later, Mac OS X 10.7 or later, Linux Kernel 2.6.31 or later and USB 2.0, USB 3.0 and USB 3.1 ports:
    For the full USB 3.1 Gen 2 (10Gbps)  performance, use with USB 3.1 Gen 2 (10Gbps) ports.
