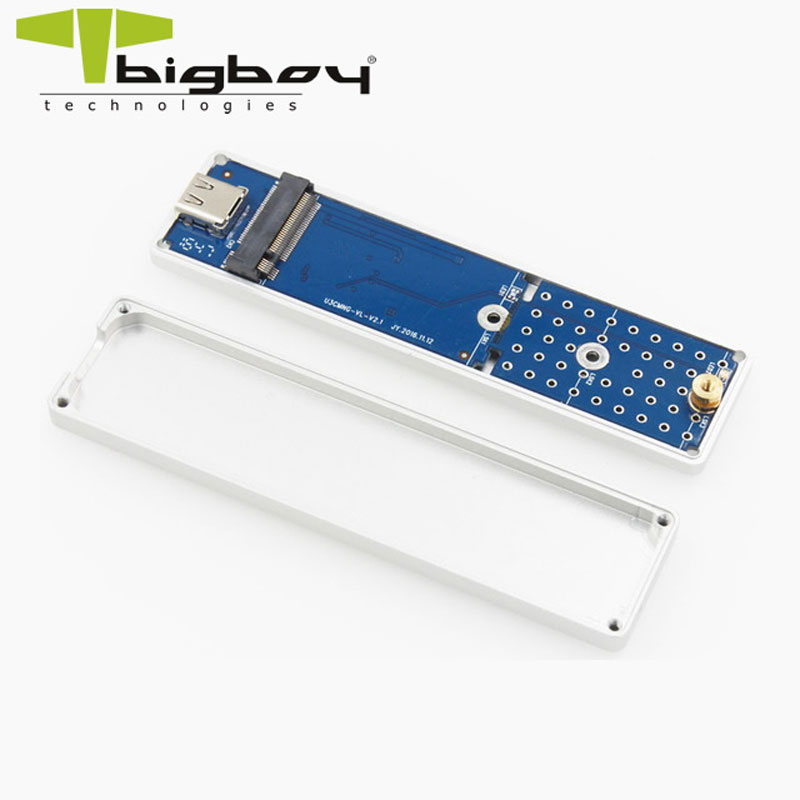

Bigboy M.2 2280 SATA III USB 3.1 Type-C SSD Enclosure

Published






High speed external storage solution

Bigboy M.2 SATA SSD enclosure designed for mobility, with a slim and compact design it is the perfect solution for quick data transfer and storage on the go. Light and durable aluminum case keeps data safe while you are on the move.

Turn M.2 SATA SSDs into high-speed USB external drive

Bigboy USB 3.1 Type-C USB turns old M.2 SATA SSDs from your laptop into external drive. You can use with all tablet, desktop and notebook systems with standard USB ( Type-A) ports. With USB 3.1 backward compatibility you can use with USB 3.0 and USB 2.0 ports.



 Use M.2 SSD with full performance



With Bigboy M.2 SATA enclosure, you can use your M.2 SATA drives with full performance. The USB 3.1 interface provides 10Gbps connection speed and UASP-TRIM support. High transfer rates are achieve in UASP supported systems.





Usage

  • Make your own USB 3.1 External SSD with your old M.2 SSD
  • Support 2242, 2260 or 2280 form factors of B-M key M.2 SATA SSD
  • Clone your old M.2 SSD to new M.2 SSD







Compatibility

  • Designed for M.2 SATA SSD drives. Support 60mm (2260) and 80mm (2280) form factors.
  • Latest USB 3.1 Gen 1 interface up to 5Gb/s super speed transfer rate
  • Support B-M Key M.2 SATA SSD drives : Kingston UV500/2280, Sandisk X300, Crucial MX300, Samsung 860/850 Evo, WD Blue, WD Green

* Not compatible with PCIe NVMe M.2 SSDs like Kingston KC1000, Samsung 960-970 Evo/Pro, SM961, Western Digital Black.

** Not compatible with SSD drives in Mac Pro, MacBook Air ve MacBook Pro systems.



Pack Content

  • 1 – USB 3.1 SATA III SSD enclosure
  • 1 – USB 3.1 Type-A – Type-C cable (24cm)
  • 1 – Screwdriver
  • 2 – Silicon band
  • 10 – Thermal pad, use with drive chips
  • 4 – Case Screw
  • 1 – M.2 SSD screw
  • 1 additional small stud to go in the 60mm/42mm stand-off, in case NVMe SSD’s shorter than 80mm



Specifications

  • Part Number : BTC-M2SATATCCS
  • Dimensions (WxHxD): 102mm x26mmx9mm
  • Weight : 54g
  • SSD Interface : SATA III ( 6Gbps)
  • Connection Interface : USB 3.1 Gen 1 (5Gbps)
  • Voltage : DC 5V
  • Operating temperature : 0°C ~70°C
  • Storage temperature : -40°C ~85°C
  • Warranty : 2 Years
  • System Support : Desktop or notebook System with Microsoft Windows 7 or later, Mac OS X 10.7 or later, Linux Kernel 2.6.31 or later and USB 2.0, USB 3.0 and USB 3.1 ports:
    For the full USB 3.1 Gen 1 (5Gbps)  performance, use with USB 3.1 Gen 1 (5Gbps) ports.
