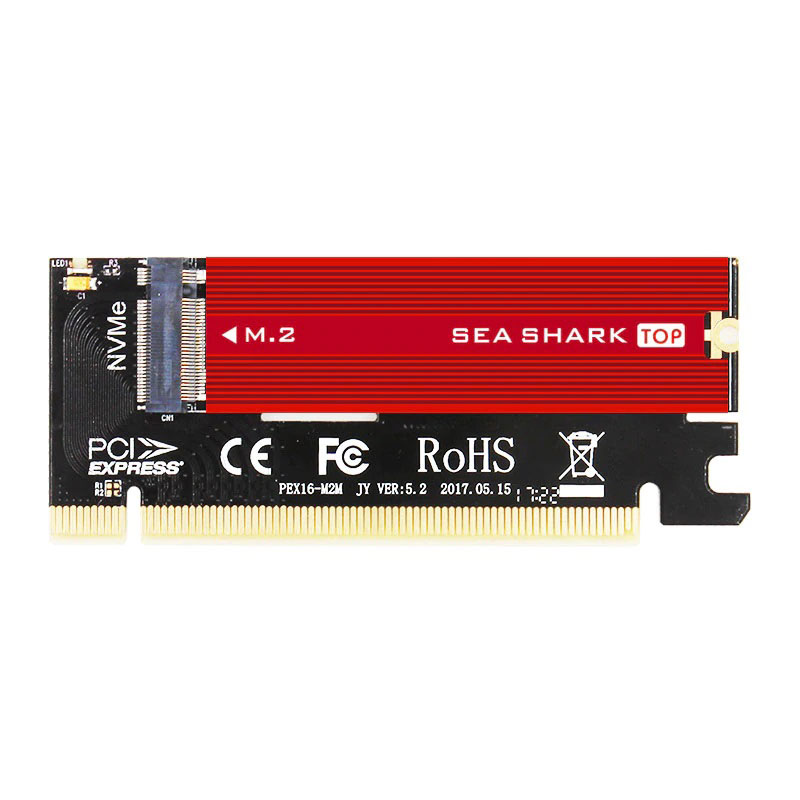

Bigboy M.2 NVMe – PCIe 3.0 x16 1U Expansion Card

Published









Bigboy M.2 NVMe SSD PCIe x16 expansion card designed to use with the next generation of NVMe M.2 SSD drives.  Can be used with the highest performance in all systems with a compatible (x16) slot. For users who do not have an M.2 slot, or users who need an additional M.2 SSD drive.

Compatible with 1U Servers

Thanks to the high speed and stability offered by the x16 connection interface, it is suitable for servers. With a 30mm height outside the slot, Bigboy expansion card also be used on 1U servers.







Small form factor

Bigboy M.2 NVMe drive adapter combines the x16 interface with an extremely small size.
Suitable for use in 1U server systems with 30mm height outside PCIe sockets.







High Quality Components

High quality components ensure drive safety and data integrity. Stable,full speed,smooth operation to make the disk more durable.







Supports M.2 drives with different form factor

Bigboy M.2 NVMe PCIe x16 expansion card is compatible with 30mm, 42mm, 60mm and 80mm NVMe SSD drives. Cannot be used with M.2 PCIe or M.2 SATA SSD drives.







Cooling

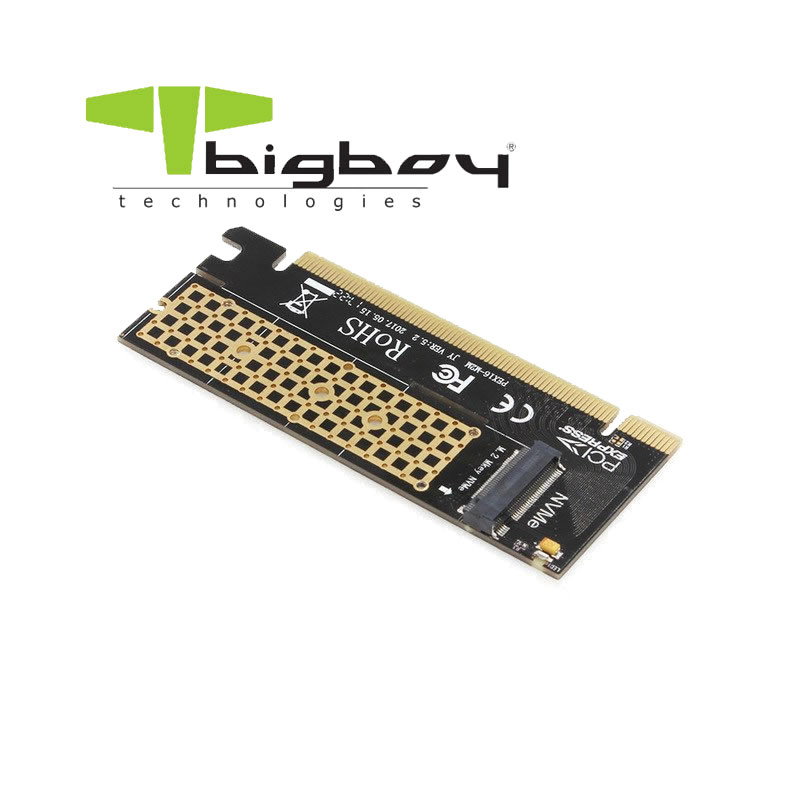

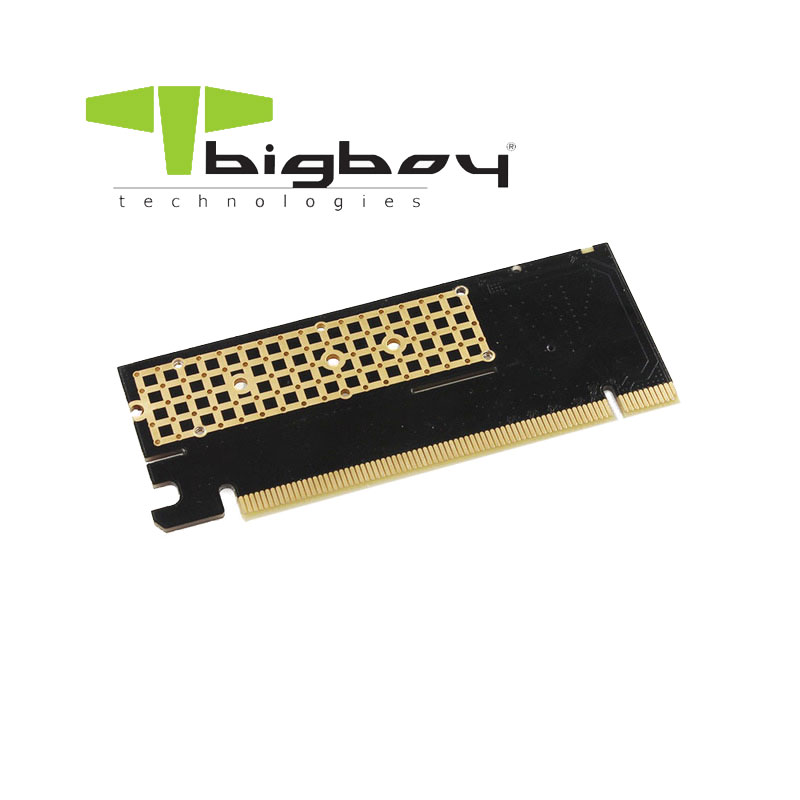

With thermal pads and aluminum heatsink, the driver’s temperature is 5°C to 20°C lower. Thanks to the 68 copper-plated holes on board, the heat dissipation is carried out quickly.







High Performance with PCIe 3.0 x16

The PCIe 3.0 x16 interface is used for high-speed NVMe M.2 SSD drives to work with full performance. With 32Gbps bandwidth, next generation M.2 NVMe SSD drives provide the highest performance.







Compatible with M Key Drives Only

Bigboy expansion card is compatible with M Key NVMe SSD drives only. Not compatible with B Key drives or B-M key SATA SSD drives. Tested drives : Kingston KC1000, Samsung 950 Pro, 960 Evo, 960 Pro, 970 Evo, 970 Pro







Pack Content



  • 1 NVMe M.2 PCIe x16 Expansion Card
  • 1 Aluminum heatsink
  • 1 Termal Pad
  • 1 Screwdriver
  • 1 SSD Screw
  • 1 additional small stud to go in the 60mm/42mm stand-off, in case NVMe SSD’s shorter than 80mm





Tecnical Specifications

  • Part Number : BTC-PEM2NVNG1U
  • Connection Interface : PCIe 3.0 x16
  • SSD Interface : NVMe
  • Dimensions (LxWxH): 100mmx40mmx1,6mm
  • Drive Support : M.2 NVMe (30mm, 42mm. 60mm, 80mm)
  • System Support : PCIe x16* expansion ports ve Windows 7**,8** and 10 or higher, Linux Kernel 2.6.31 or higher operating system.
    *Please make sure that your computer has a PCIe 3.0 slot for full NVMe performance.
    **Additional NVMe driver required for Windows 7 ve 8 operating systems.
    ***To boot using M.2 SSD, motherboard or system needs to support it. Please make sure that computer or motherboard has NVMe boot support.  NVMe boot requires, Intel 9 series (Z97, H97, Z170, X99) or highher chipset motherboard or sysytem and Windows 8 or higher operating system.
