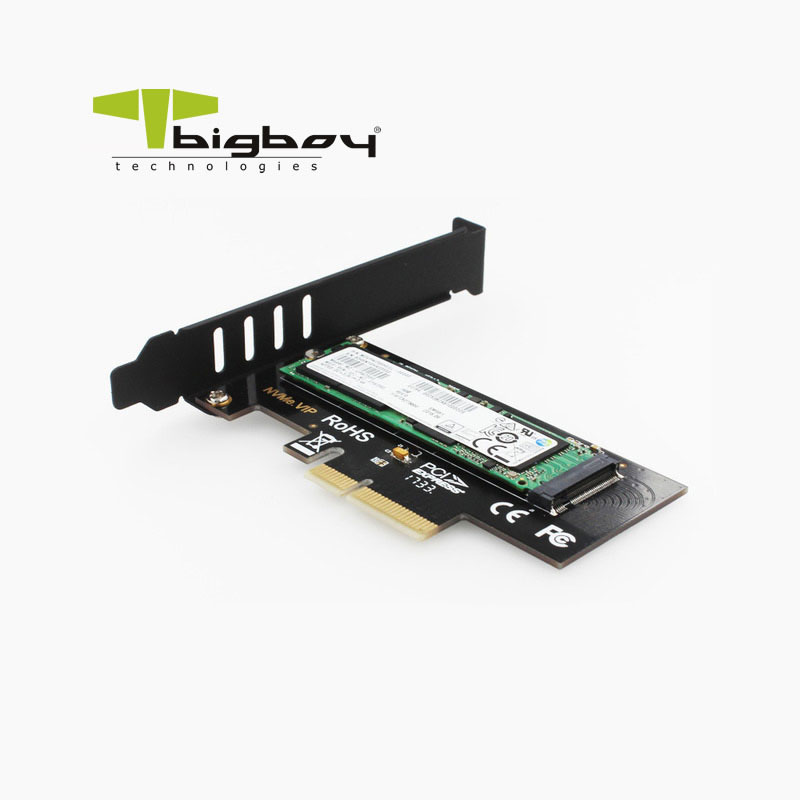

Bigboy M.2 NVMe PCIe 3.0 x4 Expansion Card

Published







  • Compatible with PCIe 3.0 x4, x8, x16 ports
  • Supports 30mm to 80mm M.2 NVMe SSDs

Bigboy M.2 NVMe SSD PCIe x4 expansion card designed to use with the next generation of NVMe M.2 SSD drives.  Can be used with the highest performance in all systems with a compatible (PCIe 3.0 x4, x8, x16) slot. For users who do not have an M.2 slot, or users who need an additional M.2 SSD drive.

Lightning speed with PCIe 3.0 and NVMe interface

With its small size design, provides continuous air flow of the cards in other slots. With the PCI Express x4 interface, it plugs into (PCIe 3.0 x4, x8, x16) slot on your system, enabling M.2 drives to deliver speeds of up to 32Gbit / s. Thanks to the support of different shape factors in the range of 30mm (2230) to 80mm (2280), it offers wide upgrade options.





High Quality Components

High quality components ensure drive safety and data integrity. Stable,full speed,smooth operation to make the drive more durable.









Supports M.2 drives with different form factor

Bigboy M.2 NVMe PCIe x4 expansion card is compatible with 30mm, 42mm, 60mm and 80mm NVMe SSD drives. Cannot be used with B key M.2 PCIe or B-M key M.2 SATA SSD drives.









Cooling

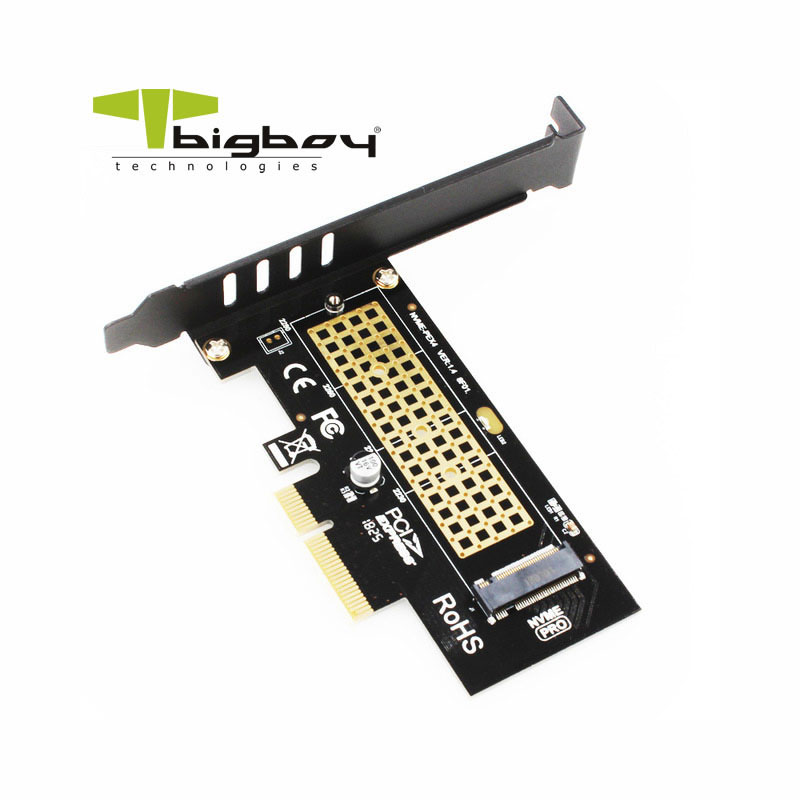

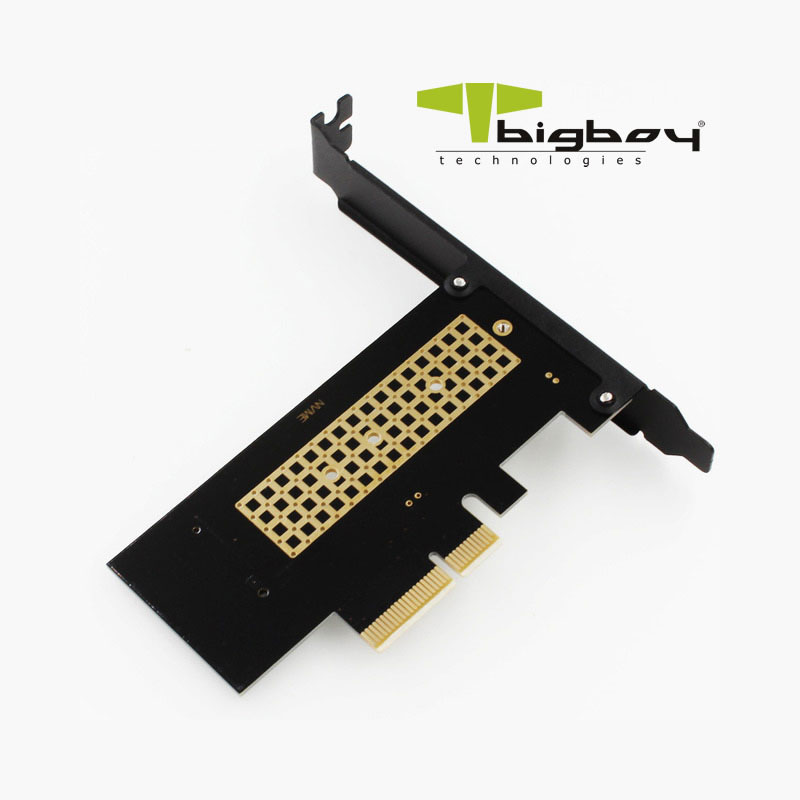

Thanks to the 68 copper-plated holes on board, the heat dissipation is carried out quickly.











High Performance with PCIe 3.0 x4

The PCIe 3.0 x4 interface is used for high-speed NVMe M.2 SSD drives to work with full performance. With 32Gbps bandwidth, next generation M.2 NVMe SSD drives provide the highest performance.







Compatible with M Key NVMe Drives

Bigboy expansion card is compatible with M Key NVMe SSD drives only. Not compatible with B Key drives or SATA SSD drives with B – M key. Tested drives : Kingston KC1000, Samsung 950 Pro, 960 Evo, 960 Pro, 970 Evo, 970 Pro







Pack Content

  • 1 NVMe M.2 PCIe x4 Expansion Card
  • 1 Screwdriver
  • 1 Case Screw
  • 1 SSD Screw
  • 1 additional small stud to go in the 60mm/42mm stand-off, in case NVMe SSD’s shorter than 80mm







Specifications

  • Part Number : BTC-PEM2NVNGFL
  • Interface : PCI Express 3.0 x4, compatible with PCIe x8, x16
  • SSD Interface : 1 x M.2 x4 Socket 3 – M Key,
  • Dimensions (WxHxD): 115.2 × 120.8 × 21.5 mm
  • Drive Support : 30mm, 42mm. 60mm, 80mm PCIe x4-based M key M.2 NVMe SSD drives.
  • System Support :PCIe* x4, x8 ve x16 expansion ports and Windows 7**,8** and 10 or higher, Linux Kernel 2.6.31 or higher operating system.
    *Please make sure that your computer has a PCIe 3.0 slot for full NVMe performance.
    **Additional NVMe driver required for Windows 7 ve 8 operating systems.
    ***To boot using M.2 SSD, motherboard or system needs to support it. Please make sure that computer or motherboard has NVMe boot support. NVMe boot requires, Intel 9 series (Z97, H97, Z170, X99) or highher chipset motherboard or sysytem and Windows 8 or higher operating system.
