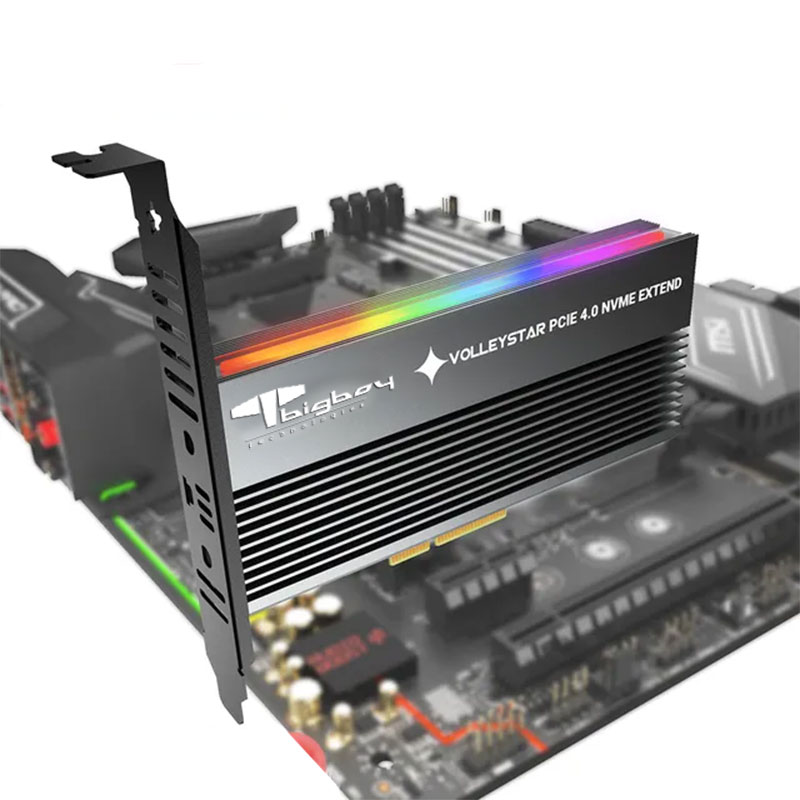

Bigboy M.2 NVMe PCIe 4.0 x4 Expansion Card with Heatsink

Published









Up to 64Gbit/s bandwidth for PCIe 4.0 NVMe M.2 drives

  • Compatible with PCIe 4.0 x4, x8, x16 slots
  • M.2 NVMe drive support from 30mm to 80mm
  • Part Number : BTC-M2G4PE4SH

Bigboy M.2 NVMe SSD PCIe 4.0 x4 expansion card enables next-generation PCIe 4.0 NVMe M.2 SSD drives can be used with the highest performance in any system with a compatible PCIe slot (PCIe x4, x8, x16). Designed for systems without M.2 slots or for users who need an additional M.2 SSD drive.

High performance with PCIe 4.0

The new generation of high-speed NVMe M.2 SSD drives utilize a PCIe 4.0 x4 connection interface for full performance. The BTC-M2G4PE4SH enables next-generation M.2 NVMe SSD drives to deliver the highest performance, offering speeds of 7GB/s (7000MB/s) and above with 64Gbps bandwidth.







Support drives with different lengths

Bigboy M.2 NVMe PCIe X4 adapter is suitable for use with 30mm, 42mm, 60mm and 80mm NVMe SSD drives. Backward compatibility with PCIe 1.0 – 2.0 – 3.0 drives and PCIe slots.

Can not used with M.2 PCIe-AHCI or M.2 SATA SSD drives.





Advanced Cooling

The gold layer on the PCB, the aluminum heatsink plate and the thermal pads on the SSD ensure fast heat dissipation. The SSD drive stays cool even during intense workloads.









High Data Security

It combines different methods for the protection of user data. It has high current protection, high voltage protection, short circuit protection, EMI (Electromagnetic Interference) prevention functions.









Compatible with NVMe M – B and M Key Drives

Only compatible with NVMe SSD drives with M Key and M-B Key notch. Not compatible with PCIe AHCI SSD and SATA SSD drives with dual notch (B and M Key). Some of the compatible drives;Samsung 990 PRO, 980PRO, 970 EVO Plus, 950PRO, 960EVO
Intel SSD6/7
Plextor M6e Series,
Kingston HyperX Predator M.2 SSD, FURY Renegade SSD, KC3000 SSD



Package Content

  • 1 NVMe M.2 PCIe 4.0 Expansion Card
  • 1 Aluminum Heatsink
  • 1 Screwdriver
  • 1 SSD screw
  • 2 Heatsink screw
  • 1 additional small stud (required using with drives shorter than 80mm.)
  • 2 thermal pad





Specifications

  • Part Number : BTC-M2G4PE4SH
  • Interface : PCI Express 4.0 x4, compatible with PCI Express x4, x8 ve x16 slots.
  • SSD Interface : 1 x M.2 x4 M-B Key, 2230/2242/2260/2280 form factor, supports only NVMe SSD.
  • Drive Support : M.2 NVMe (30mm, 42mm. 60mm, 80mm)
  • System Support :PCIe* x4, x8 ve x16 expansion ports and Windows 7**,8** and 10 or higher, Linux Kernel 2.6.31 or higher operating system.*Please make sure that your computer has a PCIe 4.0 slot for full NVMe performance.
    **Additional NVMe driver required for Windows 7 ve 8 operating systems.
    ***To boot using M.2 SSD, motherboard or system needs to support it. Please make sure that computer or motherboard has NVMe boot support. NVMe boot requires, Intel 9 series (Z97, H97, Z170, X99) or highher chipset motherboard or sysytem and Windows 8 or higher operating system.
