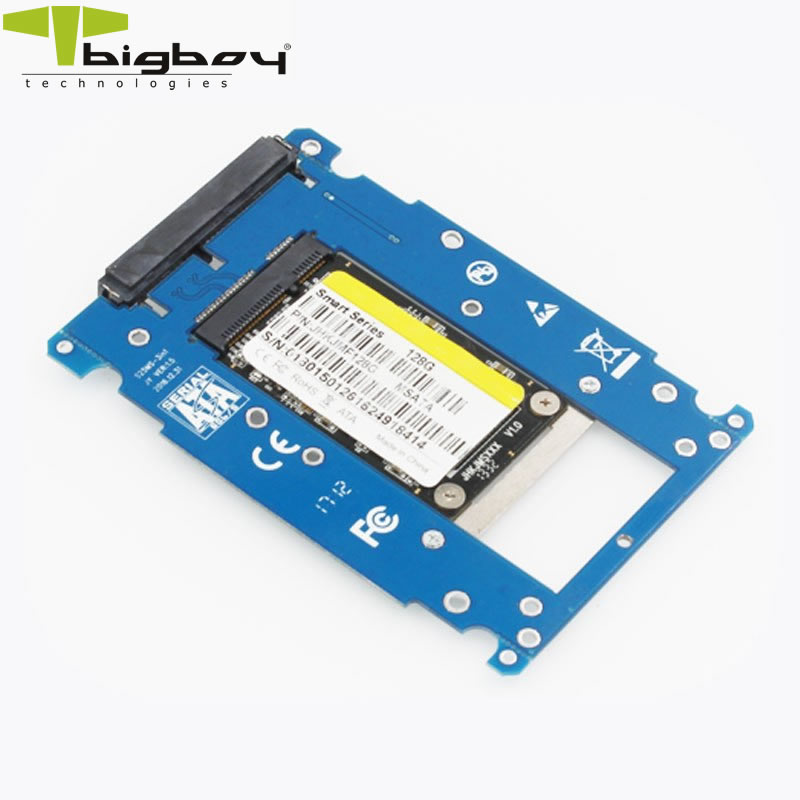

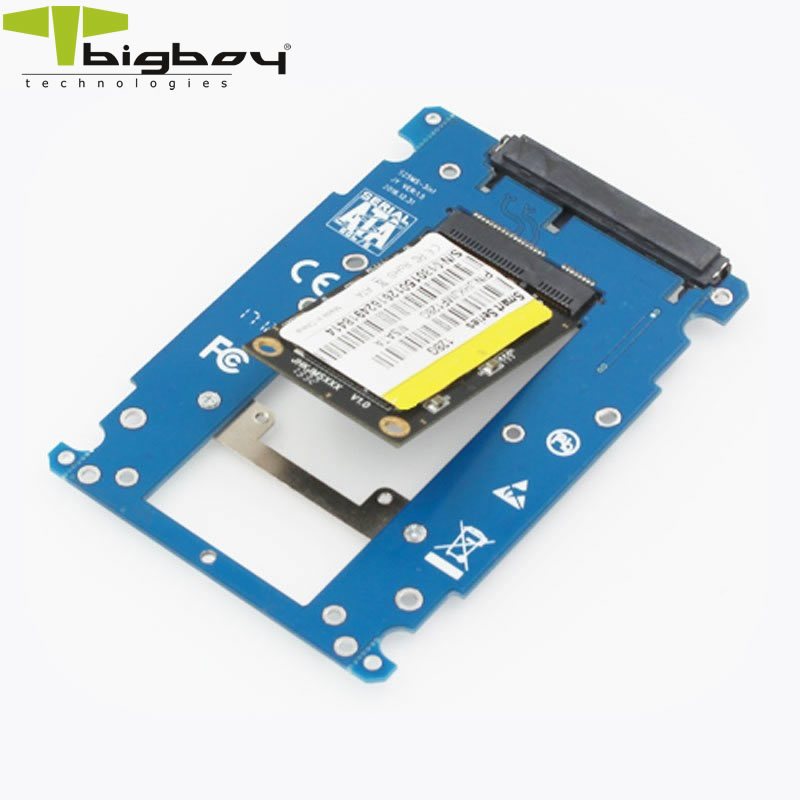

Bigboy mSATA-SATA Adapter-SATA III

Published









Bigboy 2.5 inch mSATA to SATA SSD Adapter Enclosure turns an mSATA SSD into a standard 2.5inch SATA SSD to use anywhere a 2.5inch SATA drive can be used. Designed to use old mSATA drives with any system with 2.5 inç SATA HDD or SSD drive.

SATA III 6Gbps interface

To maximize performance and utilize the full speed potential of your mSATA SATA III  SSD drives, Bigboy adapter supports SATA III for transfer speeds up to 6 Gbps (up to 550MB/s) when paired with compatible controller. Users can use the drive as a primary system drive or secondary storage for their data. Also use with older systems with SATA II interface.




High quality components

High quality components ensure drive safety and data integrity. Stable,full speed,smooth operation to make the drive more durable.

Flexible mSATA connector is durable and resists to shocks.

Gold plated SATA connector durable to 10.000 removal cycles. Small buckle in the SATA connector keeps connection secure.








Support multiple mSATA form factor

Supports full lenght mSATA SSD drives; 27mm, 50mm , 70mm.

Compatible drives:

  • 70 mm (L) x 32 mm (W)

  • 50 mm (L) x 32mm (W)

  • 28 mm (L) x 30mm (W)





Cooling

Help protect the health of your drive with an open frame design and full aluminum housing ensuring maximum heat dissipation.







2.5 inch SATA form factor

Featuring all of the standard mounting points that a normal 2.5 inch hard drive uses, the converter can be installed into External HDD Enclosures, HDD Docking Stations or into desktop or laptop computers. The enclosure also features high speed signal enhancement technology that enables seamless data pass-through with no conversion bottlenecks, enabling the mSATA drive to work as fast as it’s allowed by the host system/interface.



Package Content

  • 1 mSATA – 2,5 inç SATA Adapter Enclosure
  • 1 Screwdriver
  • 2 SSD screw
  • 4 Case screw
  • 1 SSD Holder, easily adjust to all mSATA lenghts



Specifications

  • Part Number : BTC-MSATA2SATACS
  • Connection Interface : mSATA (SATA III)- 67 pin
  • SSD Interface : SATA III – 22 pin
  • Dimensions (UxGxK): 100mm × 70mm × 7 mm
  • Drive Support : mSATA 52 pin (27mm, 50mm, 70mm)
  • System Support : System with standard 2,5 inch (22 pin ) * SATA connection. OS independent; No software or drivers required
    *For maximum drive performance must be used in SATA III (SATA 6Gbps) ports.
